CSB 12V 7.2AH F2 WIND TURB

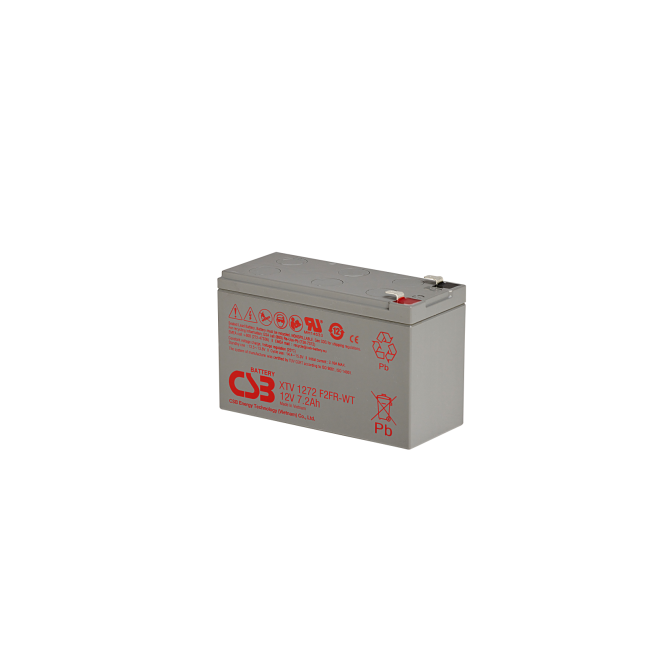

CSB Battery XTV-WT Series - Extreme Temperature Resistant, Renewable Energy XTV1272-WT The XTV1272-WT is purpose built for renewable energy applications, specifically into wind-turbine applications where high-cycling, extreme vibration, and harsh environmental conditions exist at extreme temperatures (-20 to 50°C / -4 to 122°F). XTV-WT batteries use an exclusive VRLA pure lead technology which increases charging efficiency, operation in high-vibration environment, and better cycle performance compared to general purpose batteries. Applications: Renewable energy, specifically wind turbines Design Life: Up to 12 Years in Standby Service at 25°C Built in accordance with IEC 61056-1/2:2012 and UL1989 Recognized (MH14533) Eurobat (20°C): 10/12 Years Long Life Dimensions/Weight: Length: 5.94" / 150.9mm Width: 2.55" / 64.8mm Container Height: 3.71" / 94.3mm Overall Height: 3.88" / 98.6mm Weight: 5.66 lbs. / 2.57kg Performance Specifications: • Nominal Voltage: 12V (6 cells per unit) • Nominal Capacity: 7.2Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) • Maximum Discharge Current: 130A (5 sec) • Internal Resistance: Approx. 20.4 m? • Short Circuit Current: 305A • Maximum Charge Current: 2.16A • Float Charging Voltage: 13.5~13.8 VDC/Unit at 25°C (77°F) • Operating Temperature Range: Nominal Operating Temperature: 25°C (77°F) Discharge/Charge?-20?~50? (-4°F~122°F) Storage?-15?~40?(5°F~104°F) • Equalization and Cycle Service: 14.4~15.0 VDC/unit at 25°C (77°F) • Self Discharge: Less than 10% after 90 days, can be stored up to 6 months at 25? (77?); Full recharge is required before usage and charged sooner if stored at higher temperature than 25? (77?). • Terminal: F2-Faston Tab 0.250" • Terminal tightening torque: -- • Container Material: ABS Flame Retardant (94-V0) Alternate models: CSB XTV1272F2
